Welcome to APT Controls & Appliances Pvt. Ltd.

We are one of the leading manufacture and exporter of various types of thermostats and panel space heaters used in varied industrial applications. The company has earned good reputation for quality, timely delivery and service wherever required. First product of the company, Stem Thermostat, 20 A, 230 V, 25 - 75°C, is �ISI� marked since 1994 (License no. CM/L � 7059270 from Bureau of India Standards).

We endeavour to provide better customer satisfaction through quality products and timely delivery. Our excellence in the industry enable our clients to excel in their field of operation. Over the years, we have been catering to the requirement of a large clients base. Besides the domestic market, we also export our range of products to various countries. Some of our MNC clients are : ABB Ltd. , L & T Ltd., Merloni Thermo Sani Tari (India) Ltd, Schneider Electric India Ltd., Siemens Ltd.

Restriction of Hazardous Substance (RoHS) Policy

Apt Controls & Appliances Pvt. Ltd. is committed to reducing harmful materials in all products manufactured and maintains compliant materials to all required standards. Apt Controls & Appliances Pvt. Ltd. will produce products that do not contain any chemicals, compounds or elements listed below in compliance with EU Directive 2002/95/EC “The Restriction of the use of certain Hazardous Substances in electrical and electronics equipment” (RoHS).

Lead Free Policy

  1. Wherever it is technically and commercially viable Apt Controls & Appliances Pvt. Ltd. will move its products to a lead free process that is compliant with international regulations and directives.
  2. Where a product is not able to be moved to a compliant process Apt Controls & Appliances Pvt. Ltd. will offer an alternative product which is compliant.
  3. Our intention is that any Apt Controls & Appliances Pvt. Ltd. manufactured products that may be non-compliant will be phased out over a period of time.

For achieving our above goals, it is imperative that our Suppliers & Partners supply us with Raw Materials and Components as per the RoHS Standards.

APT CONTROLS & APPLIANCES PVT LTD CONFLICT MINERALS SOURCING POLICY


Background

Section 1502 of the Dodd-Frank Act requires US exchange-traded companies subject to SEC regulation to report the presence of certain “conflict materials” in their products that originate from the Democratic Republic of the Congo (DRC) or adjoining countries. The term “conflict minerals” refer to columbite-tantalite, cassiterite, wolframite, and gold, or derivatives which are limited to tantalum, tin, tungsten, and gold (3TGs). This legislation was based on concerns that proceeds from some mining operations in this area have been used to fund violence and terror. Apt Controls & Appliances Pvt. Ltd. supports the humanitarian goals of conflict minerals legislation. However, Apt Controls & Appliances Pvt. Ltd. is not a US Exchange-traded company, is not subject to SEC regulation, and is therefore not subject to conflict minerals reporting requirements.

Apt Controls & Appliances Pvt. Ltd. Commitment

Even though Apt Controls & Appliances Pvt. Ltd. is not subject to this legislation, many of our customers are. Apt Controls & Appliances Pvt. Ltd. is committed to working with these customers to help them comply with their conflict minerals reporting requirements. We have adopted the Conflict-Free Sourcing Initiative’s (CFSI’s) free Conflict Minerals Reporting Template (CMRT) for conducting surveys of its manufactured products and related components. Surveys are distributed to all suppliers of materials and components used in the manufacturing of specific products. The “master” CMRT is updated with each new revision of the template, and when new survey information is received from suppliers. This process will continue on an annual basis.

Requirements for Our Suppliers

Our suppliers are expected to provide materials and components that are conflict free, which means either:

  1. any 3TGs necessary to the functionality or production of supplied materials must not directly or indirectly fund armed conflict in the DRC or adjoining countries, or
  2. any 3TGs must be from recycled or scrap sources.

We understand the cost of conflict minerals reporting compliance can be high, especially for small manufacturers like us. However, we expect our suppliers to use due diligence by distributing the CMRT survey upstream to their suppliers until the appropriate smelter/refiner is identified. Once identified, this information must be passed back down through the supply chain to Apt Controls & Appliances Pvt. Ltd.’s direct supplier so they can complete their CMRT and convey it to Apt Controls & Appliances Pvt. Ltd. in electronic format.

Water Heater Thermostat

We manufacture high quality precision heating thermostats with temperature variable knob which are used in geysers and water heaters.

Technical Characteristics

Stem length 175 mm, 275 mm
Temperature range of operation 25-75 �C (other ranges on request)
Tolerance on operating temperature Within 4�C or Customer defined
Temperature Differential Within 10�C
Insulation Level 1 KV for 1min
Contact Rating 20 A, 230V resistive
Contact configuration Opening on temperature rise

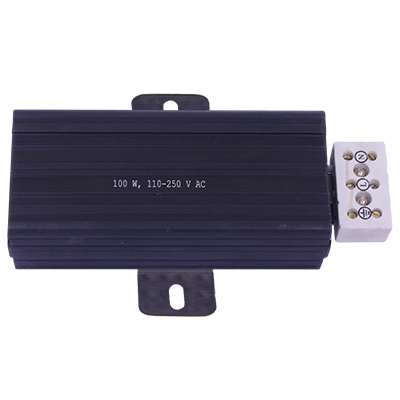

PTC Heater With Bracket

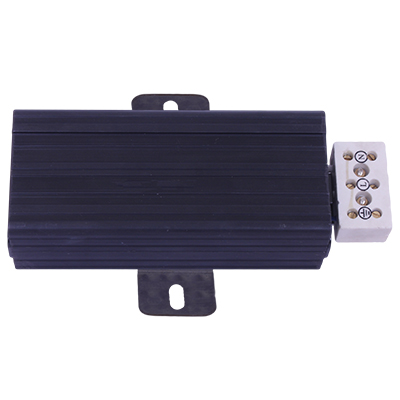

Enclosure Heater MK IV

MK IV 250 Watts

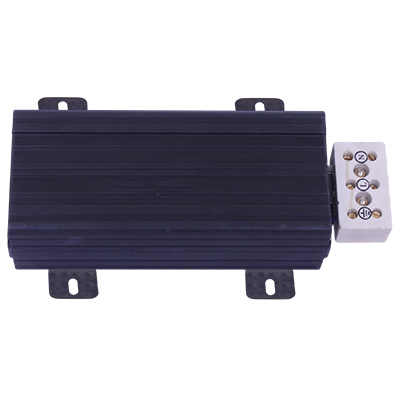

MK IV 400 & 500 Watts

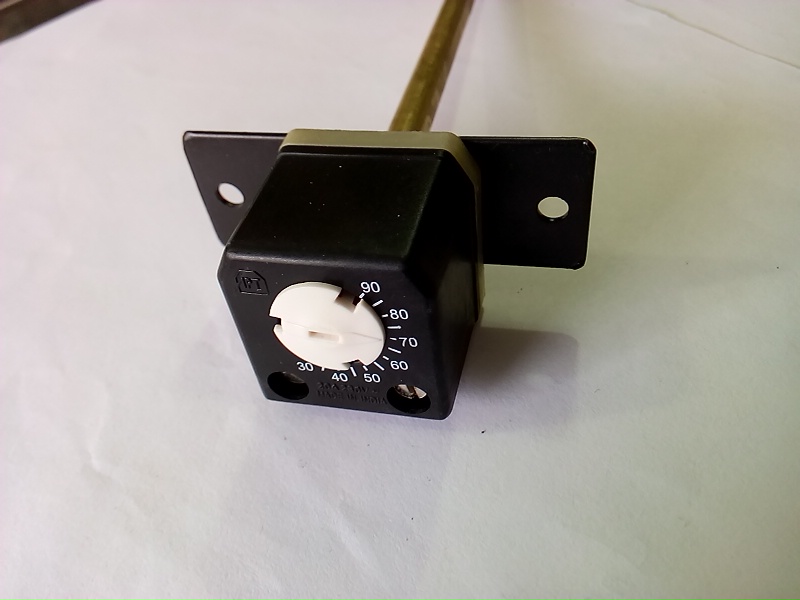

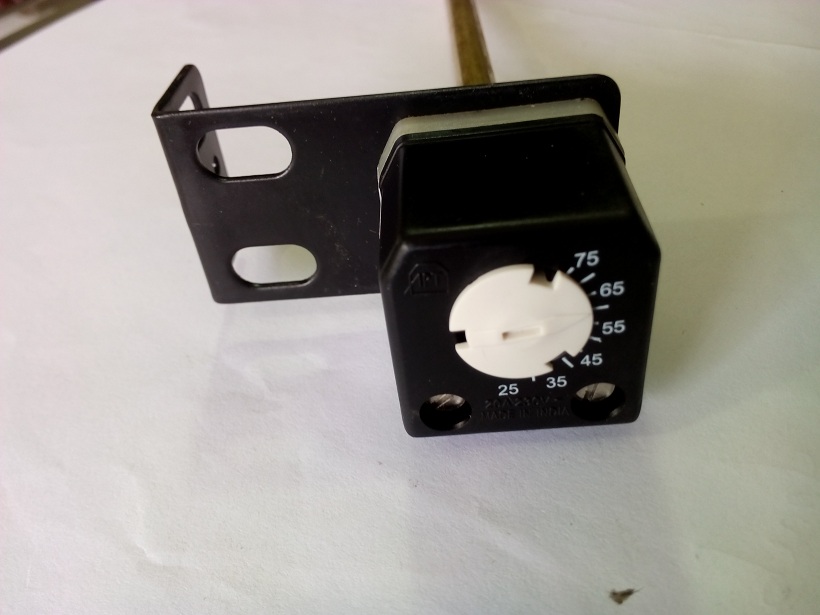

Stem Type Thermostats

Thermostat with L bracket Thermostat with Plain bracket

We manufacture high quality precision heating thermostats with temperature variable knob and having different mounting options which are used in switchboards, cabinets, panels and enclosures.

Technical Characteristics

Stem length 175 mm
Temperature range of operation 25-75 �C (other ranges on request)
Tolerance on operating temperature Within 4 �C or Customer defined
Temperature operating point of safety Customer defined
Temperature Differential Within 10 �C; 2 pole safety has to be manually reset
Insulation Level 1 KV for 1 min
Contact Rating 20 A, 230V resistive
Contact configuration Opening on temperature rise

Bimetallic Thermostats

We manufacture high quality din rail mountable precision heating / cooling thermostats with temperature variable knob which are used in switchboards, cabinets, panels and enclosures.

Technical Characteristics

Thermostat Type Heating Thermostat Cooling Thermostat
Contact Configuration Contacts opening on temperature rise Contacts closing on temperature rise
Product Identification Red coloured knob with light grey body Blue coloured knob with light grey body
Sensor Element Thermostatic Bimetal
Temperature Range 0 to 60 �C or 30 to 140 �F
Switching Differential Less than 6 K at a temperature change of >1 K / min
Service life 100,000 cycles
Switching capacity 10 A resistive @ 250 V AC, 15 A resistive @ 120 V AC
Terminals Suitable for AWG 14 ( 2.5 mm�) wires
Mounting Clip for 35 mm DIN rail

Panel Space Heaters / Enclosure Heaters MK II A

We manufacture heaters in different ratings and sizes for enclosures, panels, cabinets & switchboards.

The heaters have the following characteristics:

� Insulation level: 2 KV for 1 min.
� Standard power tolerance : � 3%

Construction:

� Body made of anodized heat sink grade extruded aluminium.
� High quality Kanthal resistance material is used as heating element.
� Mica is used for optimum insulation.
� Resistance element and insulation are held tight in between extruded aluminium body and squeezed.

Advantages:

� Close tolerance of electrical rating.
� Quick and uniform heating.
� Fast dissipation of heat into air.
� Withstands much higher degree of mechanical shock and vibration.
� Very good insulation resistance even in extreme humid conditions.
� Elevated body for easy passage of heat directly to air, without heating panel body.

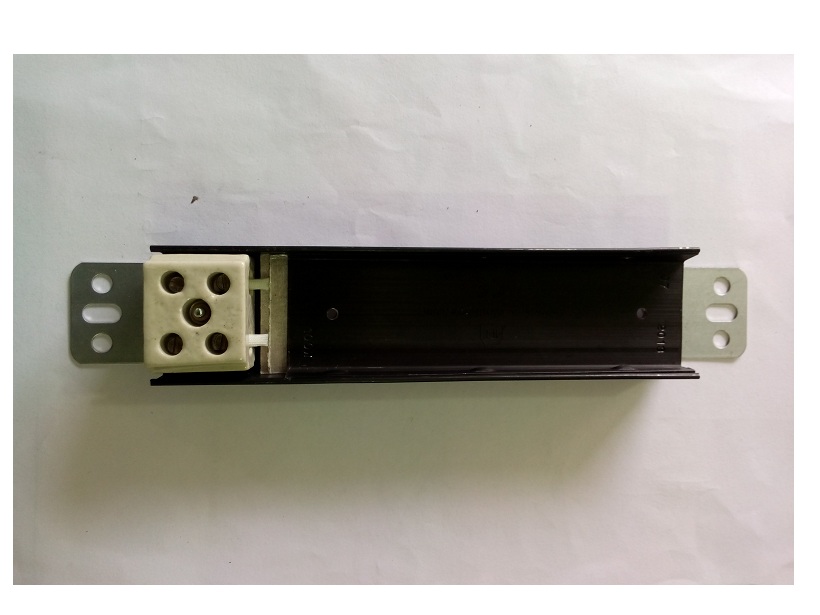

MK II A End Fixing

The heater is available in following lengths and electrical ratings.

Specification

Heater Length (mm) Fixing Distance (mm) Wattage (at 24, 48,110, 120, 220, 230, 240 or 250 Volts)
210 � 1 190 � 6 50, 60 & 80
240 � 1 220 � 6 30, 40, 100 & 120
270 � 1 250 � 6 150
300 � 1 280 � 6 180 & 200
330 � 1 310 � 6 Upto 250

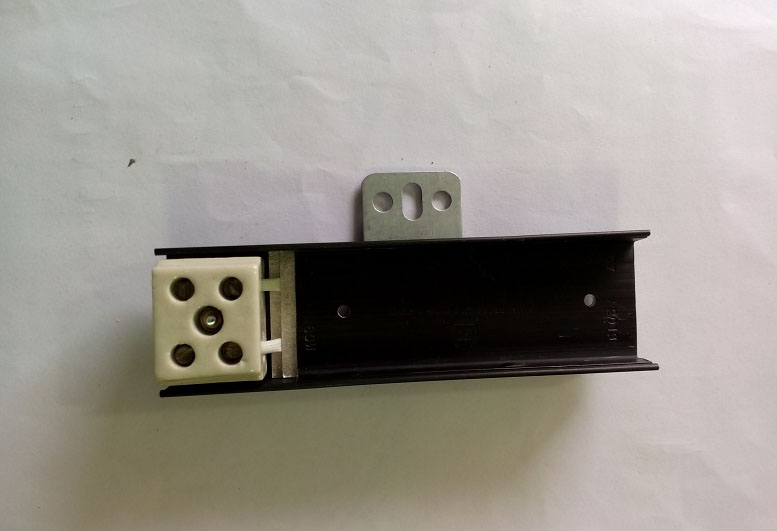

MK II A Middle Fixing

The heater is available in following lengths and electrical ratings.

Specification

Heater Length (mm) Wattage (at 24, 48,110, 120, 220, 230, 240 or 250 Volts)
150 � 1 50, 60 & 80
180 � 1 30, 40, 100 & 120
210 � 1 150
240 � 1 180 & 200

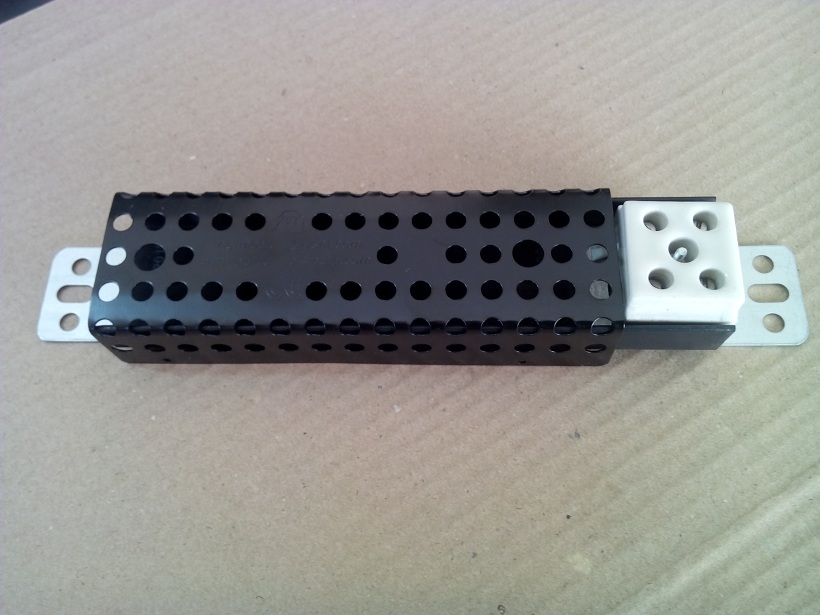

Panel Space / Enclosure Heaters with perforated cover MK II B

We manufacture heaters in different ratings and sizes for enclosures, panels, cabinets & switchboards.

The heaters have the following characteristics:

� Insulation level: 2 KV for 1 min.
� Standard power tolerance : � 3%

Construction:

� Body made of anodized heat sink grade extruded aluminium.
� High quality Kanthal resistance material is used as heating element.
� Mica is used for optimum insulation.
� Resistance element and insulation are held tight in between extruded aluminium parts and squeezed.
� Protective Perforated cover with high quality CED coating.

Advantages:

� Close tolerance of electrical rating.
� Quick and uniform heating.
� Fast dissipation of heat into air.
� Withstands much higher degree of mechanical shock and vibration.
� Very good insulation resistance even in extreme humid conditions.
� Elevated body for easy passage of heat directly to air, without heating panel body.

MK II B End Fixing

The heater is available in following lengths and electrical ratings.

Specification

Heater Length (mm) Fixing Distance (mm) Wattage (at 24, 48,110, 120, 220, 230, 240 or 250 Volts)
210 � 1 190 � 6 50, 60 & 80
240 � 1 220 � 6 30, 40, 100 & 120
270 � 1 250 � 6 150
300 � 1 280 � 6 180 & 200
330 � 1 310 � 6 Upto 250

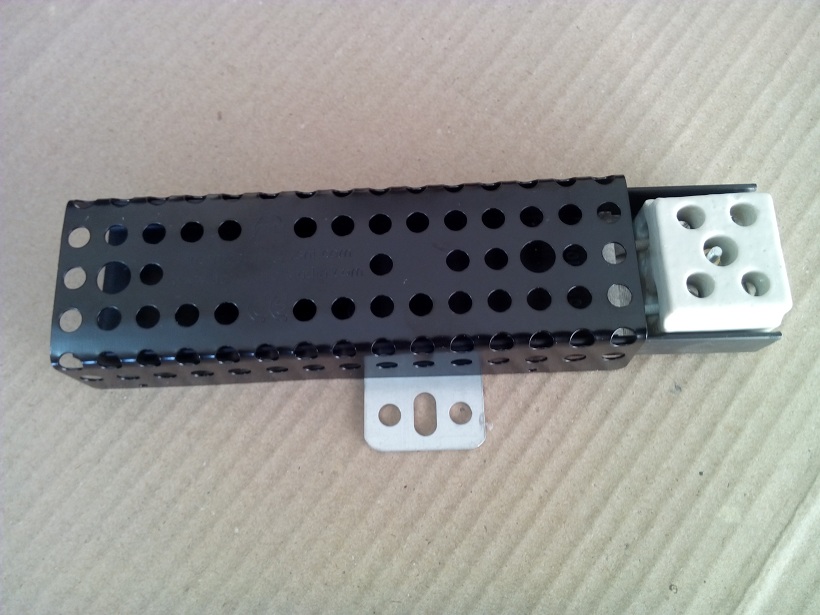

MK II B Middle Fixing

The heater is available in following lengths and electrical ratings.

Specification

Heater Length (mm) Wattage (at 24, 48,110, 120, 220, 230, 240 or 250 Volts)
150 � 1 50, 60 & 80
180 � 1 30, 40, 100 & 120
210 � 1 150
240 � 1 180 & 200

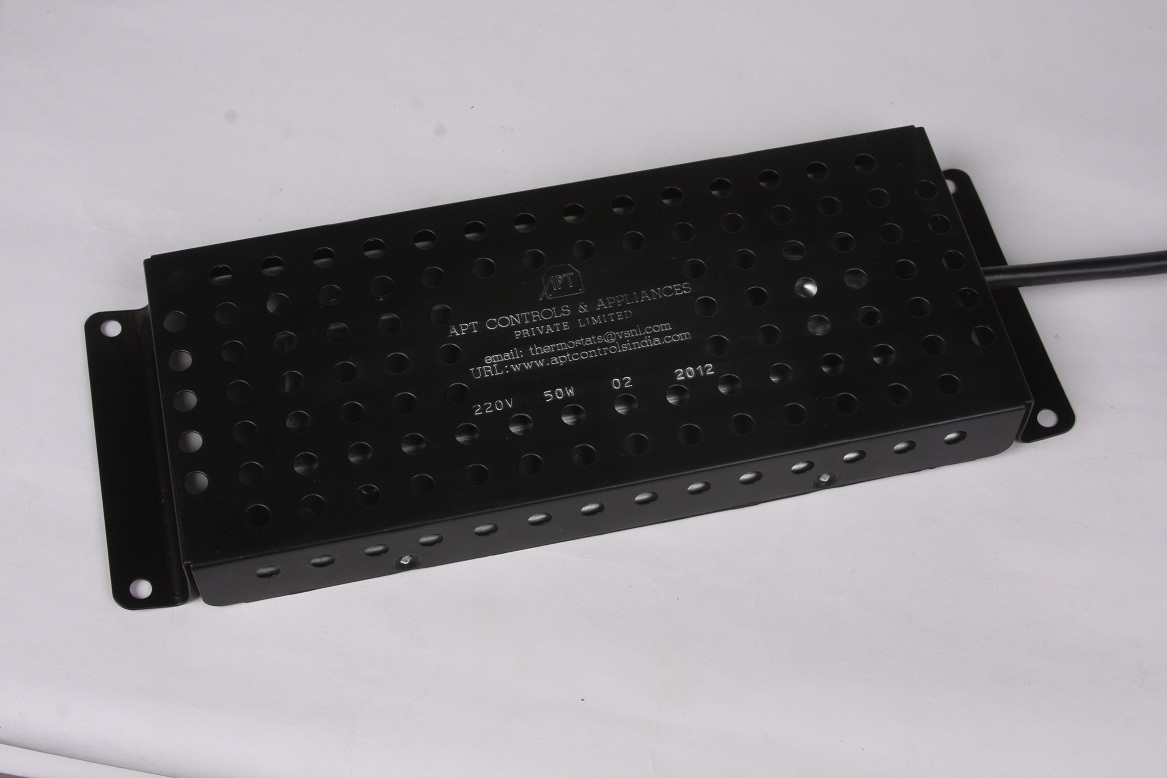

Panel Space / Enclosure Heaters with perforated cover

We manufacture heaters in different ratings and sizes for enclosures, panels, cabinets & switchboards.

The heaters have the following characteristics:

� Insulation level: 2 KV for 1 min.
� Standard power tolerance : � 3%

Construction:

� Body made of anodized heat sink grade extruded aluminium.
� High quality Kanthal resistance material is used as heating element.
� Mica is used for optimum insulation.
� Resistance element and insulation are held tight in between extruded aluminium body and squeezed.
� Protective Perforated cover with high quality CED coating.

Advantages:

� Close tolerance of electrical rating.
� Quick and uniform heating.
� Fast dissipation of heat into air.
� Withstands much higher degree of mechanical shock and vibration.
� Very good insulation resistance even in extreme humid conditions.
� Elevated body for easy passage of heat directly to air, without heating panel body.

The heater is available in following lengths and electrical ratings.

Heater Length (mm) Power Cord Length Wattage (at 24, 48,110, 120, 220, 230, 240 or 250 Volts)
248 � 2 From 0.3 mtr to 3 mtrs 30, 40, 50, 60, 80 & 100

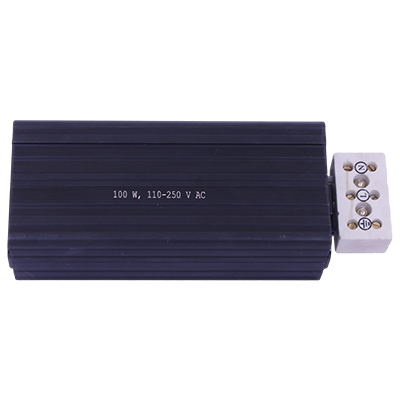

PTC Enclosure Heater Dinrail Mountable

We manufacture heaters in different ratings and sizes for enclosures, panels, cabinets & switchboards.
